Home > Products > Box Erecting Machine > Automatic Box Erecting Machine
Automatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine
  • Automatic Box Erecting MachineAutomatic Box Erecting Machine

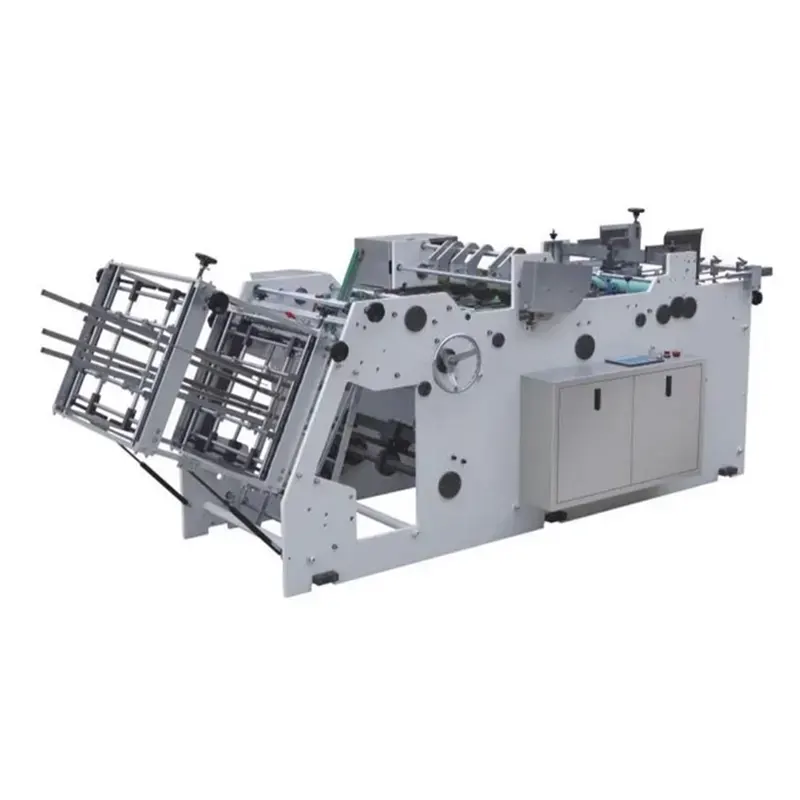

Automatic Box Erecting Machine

China’s automatic box erecting machine are ideal for mass production of hamburger boxes, French fries box, food tray, lunch box, Chinese noodle box, hot dog box in fast food packaging industry. Can be bought with such a competitive price from NEW STAR factory.

Model:LJZHJ-800

Send Inquiry

Product Description

The range of machines and machine types supplied by NEW STAR is extremely broad, including automatic box erecting machine for fast food boxes. Innovation makes us a reliable, industry leading company in China. Solutions with the objective of improving your product or your productive system. A lot of models in stock now, welcome send your inquiry.


Automatic box erecting machine

Automatic box erecting machine adopts micro-computer.PLC,alternating current frequency converter,the vacuum-sucking paper feeding,auto gluing,automatic paper tape counting,and chain drive.All of these main parts and electric control system adopts imperted brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.


Product Parameter (Specification)

Type

LJZHJ-800

Production capacity

50-160pcs/min

Suitable Material

200-600g/m²cad paper,PE coated paper,kraft paper,corrugated paper

Length

L80-450mm,degree:5° -40°

Width

B100-600mm Height H15-200mm

Total Power

4.0KW

Total Weight

2.2T

Overall Dimension

3600X1500X1700mm

Power Source

380V 50HZ


Product Feature And Application

The paper carton erecting machine is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box, Chinese noodle box, hot dog box, etc.

1. Intelligent system with Siemens PLC+HMI, all parameters can be set to meet production requirements

2. Touch screen Easy operate, smart alarm system, defective self-detection

3. Optical fiber to ensure high-speed operation stability

4. Servo motor with photocell automatic correction ensure accuracy

4 .The raw material loading and unloading adopts the pneumatic cylinder lifting structure, the roll adopts the full automatic constant tension control.

5 .Heavy duty machine body operating steady, lifelong less maintenance.


Product Details

The carton erecting machine is highly efficient.The working speed is 50-160 pieces per minute and finished produces are automatically counted.It can be customized to do different size and shaped boxes though changing mold.


The chain drive is adopted in the machine to ensure the smooth running,and endurable structure.Each part is separated to reduce noise and workload,as well as to increase the stability.


Time of paper feeding is adjusted by cam.simply operating,reducing failure rate.And vacuum-sucking paper feeding.


Automatic gluing systems controlled by reduce motor from sponge.


Every part of forming and collecting system can be adjusted according to the size of mold.The whole collection system can be opened to change mold and install the forming parts conveniently.


It adapts paper tape counting equipment to count product quickly and accurately,and to readjusted
