The Full Automatic High-speed Machine is an efficient, stable, and easy-to-operate and maintain laminating solution. This machine is suitable for high-volume laminating needs, with a maximum speed of up to 100 sheets per minute. It features adjustable temperature, energy-saving design, and can provide you with high-quality laminating effects.
Full Automatic High-speed Machine

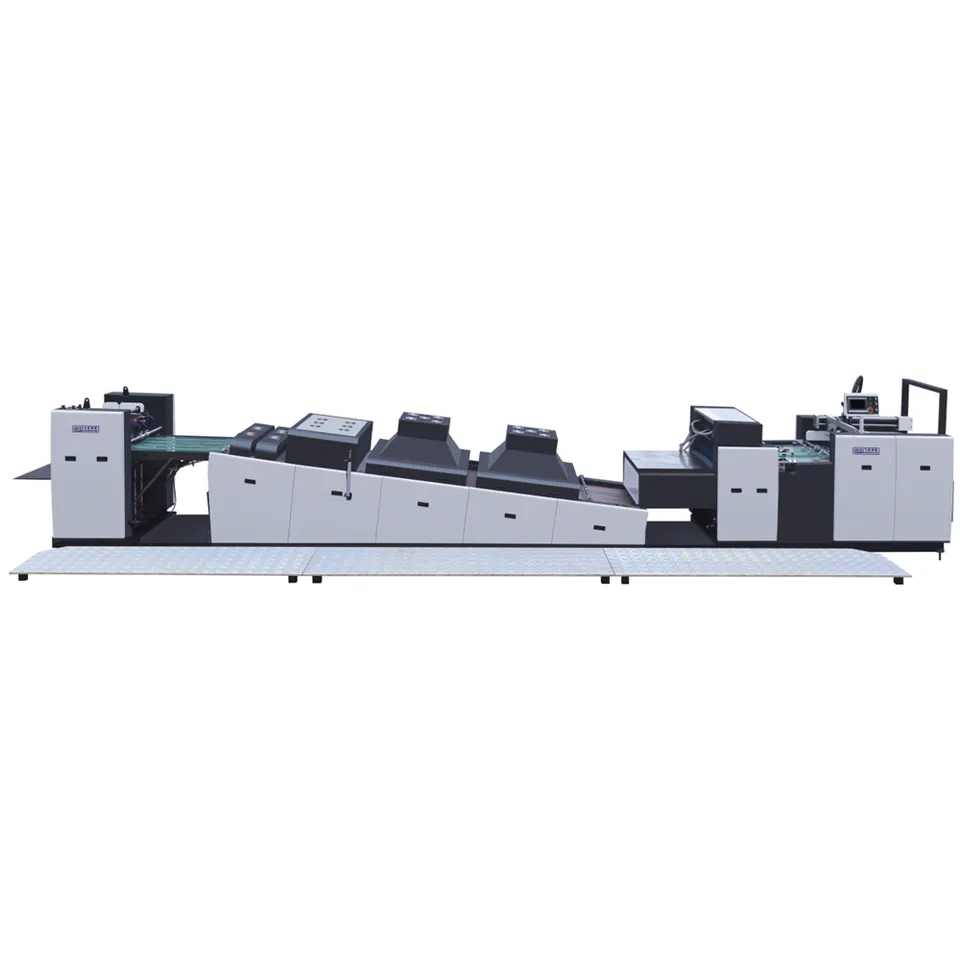

The automatic spot uv coating machine SJUV-760 is a new coating equipment with excellent performance, which integrates the advanced technologies at home and abroad. It can both local and overall coating, and has the advantages of high working speed, high gloss, thin and uniform coating layer. It is widely used in packaging decoration, book cover and other printing materials.
Item
|
FHSGJ-760
|
FHSGJ-1040
|
Max Laminating Paper
|
760*585mm
|
1020*720mm
|
Max Laminating Paper
|
240*240mm
|
290*290mm
|
Paper weight
|
80-400g/㎡
|
80-400g/㎡
|
Speed
|
6000pcs/h
|
6000pcs/h
|
Power
|
45kw
|
60kw
|
UV lamp
|
3pcs * 8kw
|
3pcs * 9.75kw
|

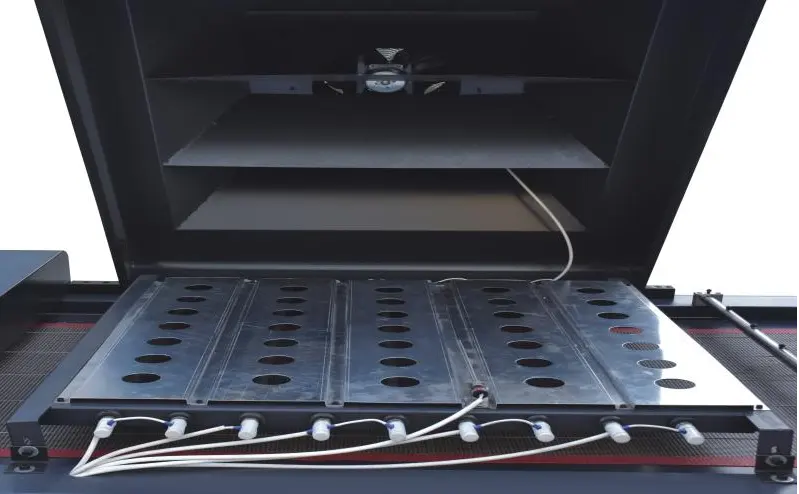

IR lamp
|
18pcs * 1kw
|
18pcs * 1.5kw
|
Paper feed height
|
1050mm
|
1050mm
|
Paper stack height
|
920mm
|
920mm
|
Overall dimensions
|
7800*1420*1730mm
|
9200*1750*1730mm
|
Total weight
|
6500kg
|
7500kg
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|||
|
|
|
||||
|
|
|
|
|
||
|
|
|
|
|
High Speed
Easy to operate
Stream feeder
Servo-controlled pump
Electromagnetic heating
Stable and precise
1 year warranty
1: Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation
2: Paper photoelectric control, automatic lifting
3: Double protection feeder lifting safety
4: Using the latest paper stacker design, the entire tray can be pushed in, and the tray can be pushed in directly after printing, without manual paper sorting. Pre-stacker can also be used. two-way choice. Greatly save paper time and reduce the labor intensity of operators.
· Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
· Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by
photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for
self-protection.
· Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
· High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
· The combination of air expansion shaft and braking device can adjust film release tension and speed.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge for the automatic cut of laminated paper.
· Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
· Pneumatic cutting system realizes automatic paper cut.
· Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.
