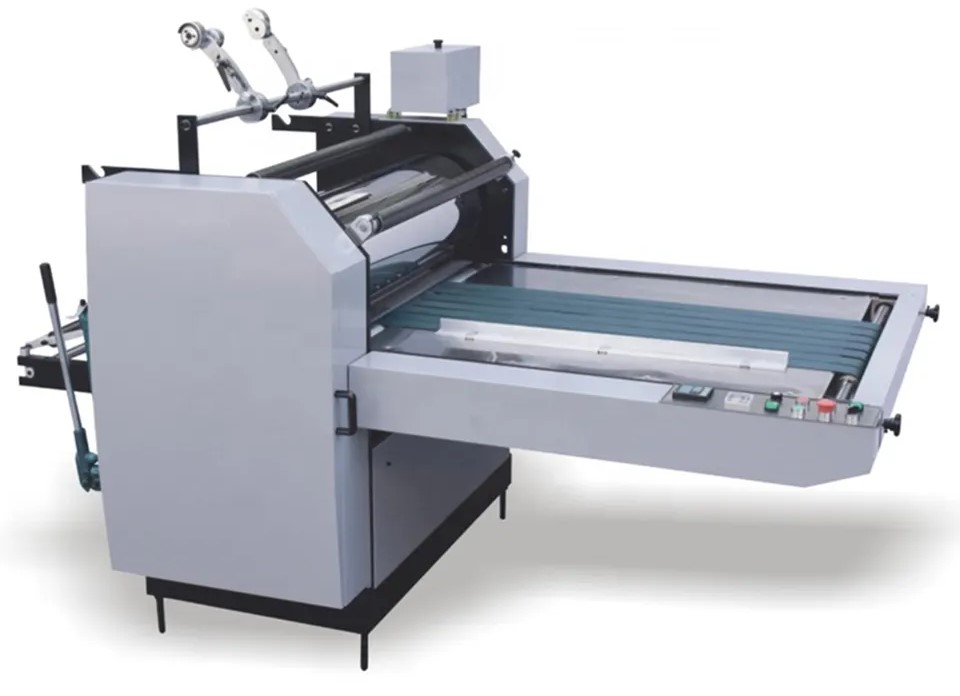

Manual Thermal Lamination Machine

The Manual Thermal Lamination Machine is a reliable and cost-effective solution for anyone who needs to laminate documents, photos, or other materials on a regular basis. With its easy-to-use design, versatile applications, and affordable price, the Manual Laminator is an ideal choice for small to medium-sized businesses, schools, and home offices.

Model:YFMC-720A/920A/1100A

Send Inquiry

Product Description

NEW STAR Machine Company manufactures and ships precision Automatic folder gluer machine for organizations all around the world. We producequality equipments to exact specifications. Buy manual laminating machine in stock with affordable wholesale price.

Manual Thermal Lamination Machine

The Manual laminating machine has the characteristics of leading design, exquisite appearance, compact structure and convenient operation. This machine is the most ideal laminating equipment for digital printing, graphic printing, short board printing, image printing, office document printing, etc.

Product Parameter (Specification)

Item	Data	Data	Data
Model	YFMC-720A	YFMC-920A	YFMC-1100A
Max laminating width	620mm	920mm	1040mm
Speed of Laminating	0-30m/min	0-30m/min	0-30m/min
Temperature of laminating	60-130ºC	60-130oC	60-130oC
Total power	11kw	13kw	16kw
Voltage	380V	380V	380V
Total weight	600kg	700kg	900kg
Overall dimension	210013001600mm	210015001600mm	210017001600mm

Product Feature And Application

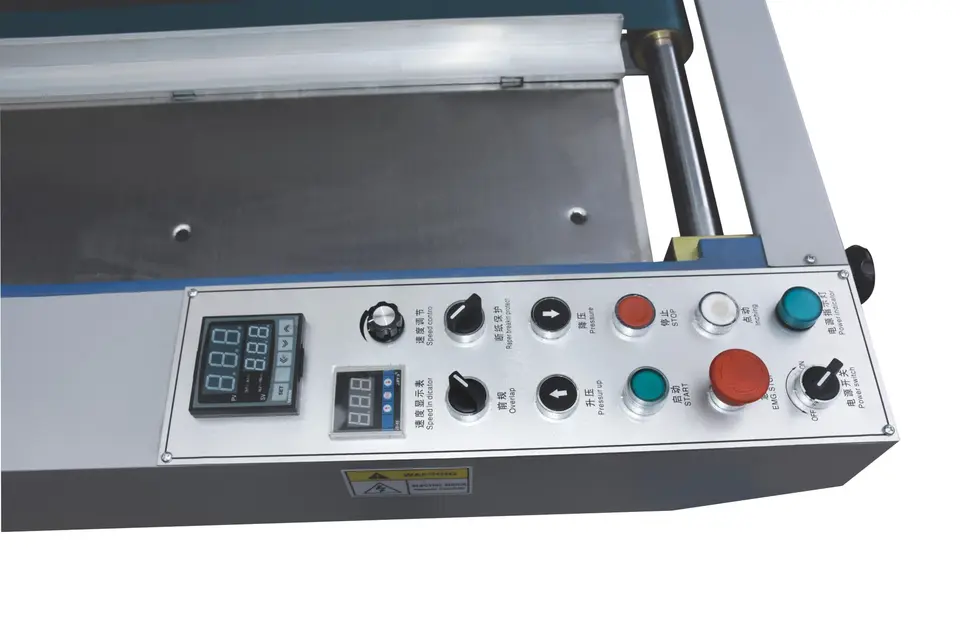

·SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine's speed easily and guarantee the machine's running stable.
·One-piece construction design makes the machine run more stably, and lengthens the machine's lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge to make the separation of laminated paper easy.
·Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon.
