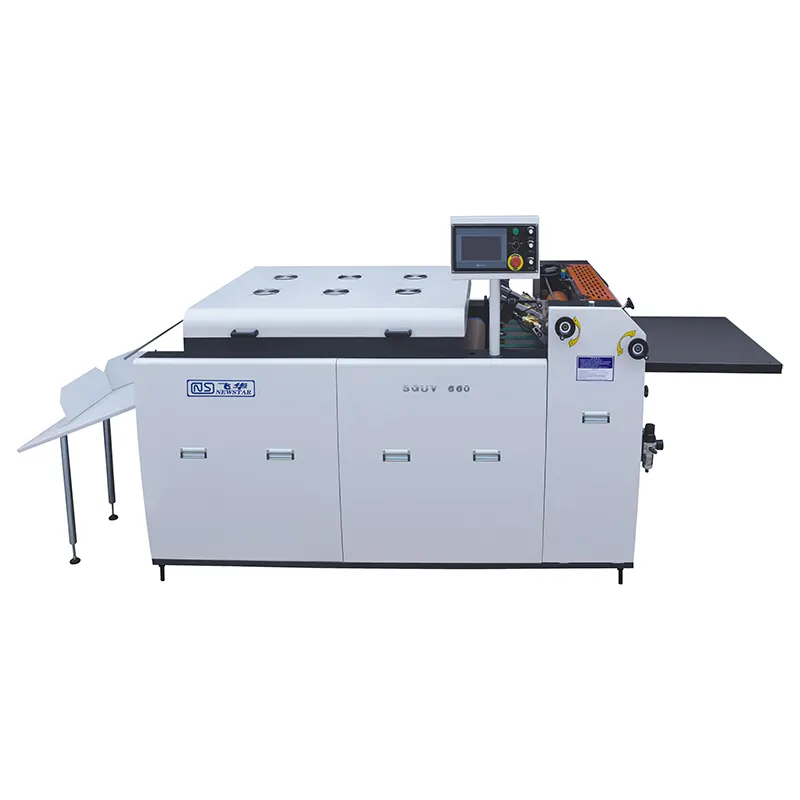

Manual UV Coating Machine

Get great price on factory manual uv coating machine options from NEW STAR. China’s cost effective and energy efficient solution for digital printing market. You can ask for more details before buying.

Model:SGUV-660/740

Send Inquiry

Product Description

With more than 12 years of experience of manufacturing and exporting, NEW STAR is thesupplier of choice for Manual uv coating machines. Provide customers with professional solutions and services, we are committed to continue to create more value for customers. Buy manual uv coating machinein stock withbest wholesale price.


manual uv coating machine

manual uv coating machin is designed according to the characteristics of domestic and foreign industries. It is a UV oiled and coated equipment on the paper surface. It adopts digital printing. After being processed by this machine, it can improve the surface gloss of printed matter. It has the functions of antifouling, moisture-proof, anti fading and wear-resisting. It is controlled by PLC, 1 UV lamps and 3 IR lamps.


Product Parameter (Specification)

Model

SGUV-660

SGUV-740

Max. Sheet Size

620mm

740mm

Min. Sheet Size

150x210mm

150x210mm

Sheet Weight

80~500g/m2

80~500g/m2

Speed

0~40m/min

0~40m/min

Power

12Kw

12Kw

UV Lamp

1pcsx6.5Kw

1pcsx6.5Kw

IR Lamp

3pcsx1.2Kw

3pcsx1.2Kw

Weight

850kg

850kg

Dimension

3250x1180x1230mm

3250x1250x1230mm


Product Feature And Application

Small manual or inline uv coating machine is easy to operate. It is suitable for comprehensive UV coating and water-based coating of books, advertisements, labels, photo albums and other printed materials. It can improve the quality of printed materials, increase aesthetic feeling, moisture-proof and wear-resistant. It is the best production equipment for small-size printed materials.

·This UV Coating Machine is equipped with UV curing and IR drying device.

·Digital frequency converter speed control. And independent conveyor driven.

·Larger diameter coating rollers makes the coating effect smoother & brighter.

·Full coverage splash guards to protect from splashing.

·Used vacuum airbed for maximum hold down the paper sheets on conveying.

·UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.

·Two level UV lamp power setting.

·Easy access UV lamp chamber and replacement.

·High velocity blower fan for cooling and exhaust.

·Safety locker on all machine doors and covers.

·Full coverage protection against UV radiation around the UV lamp chamber.

·Lower temperature control on the UV lamp chamber surface.

·Emergency stop switches at arms length throughout the machine .

·Interlocks design prevents against misoperation.


Product Details

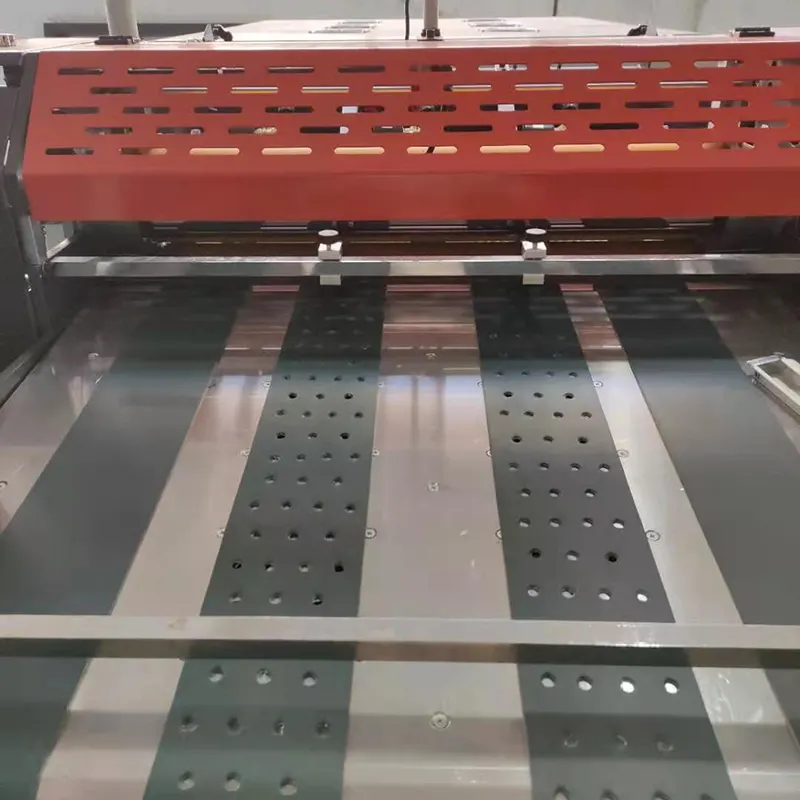

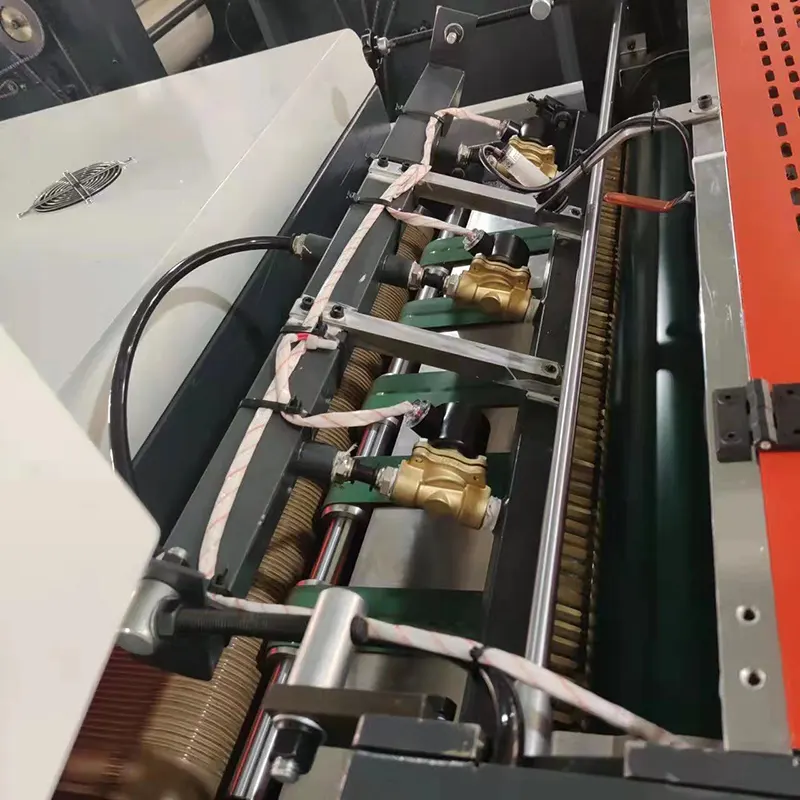

Adopts vacuum air cushion to absorb the paper, which is more safe and reliable

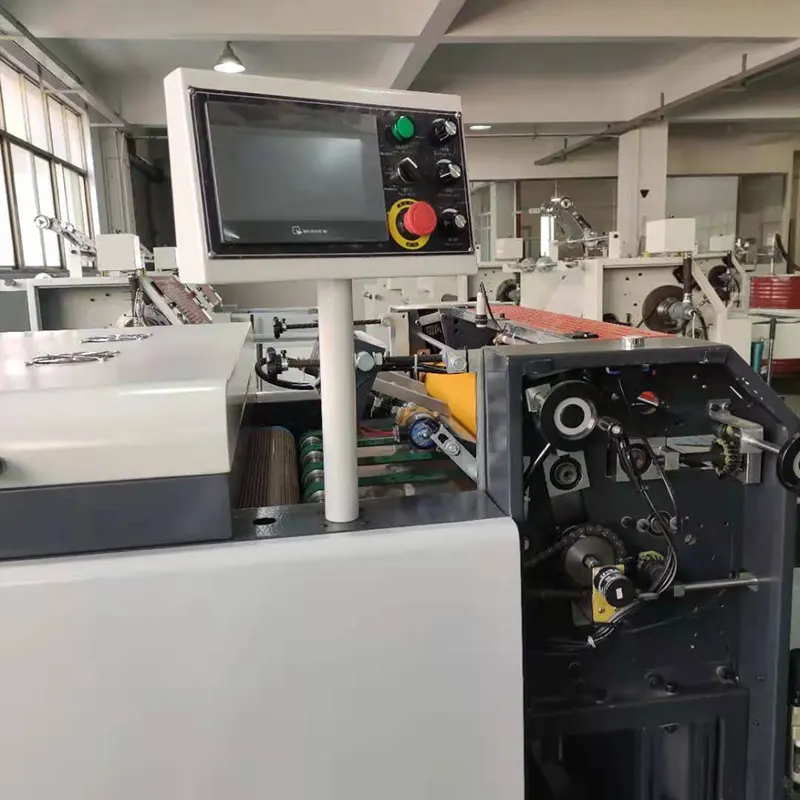

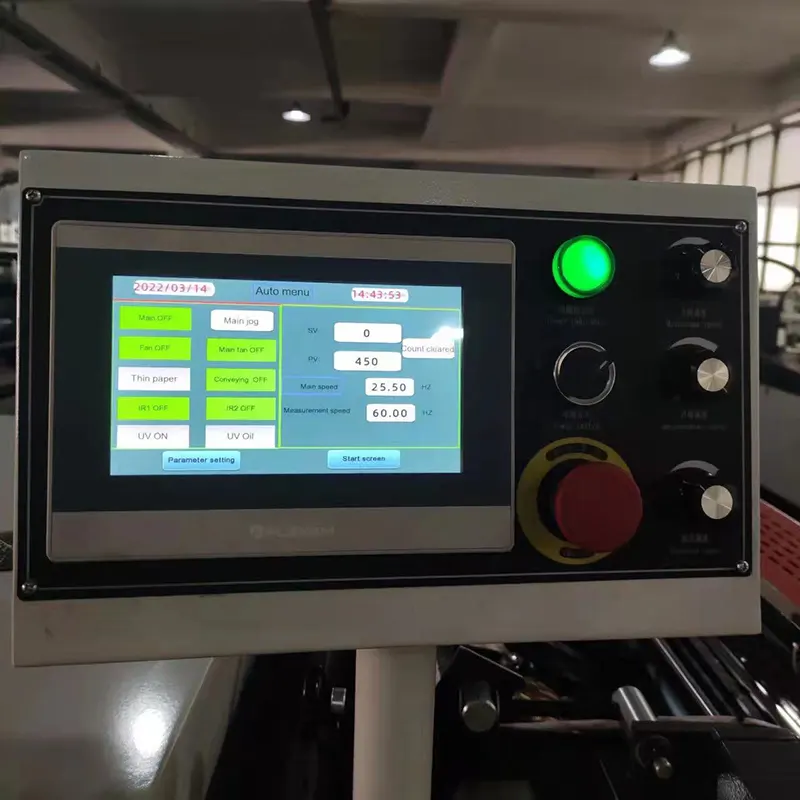

Touch screen control: the control system is controlled by PLC, and the touch screen displays the operation

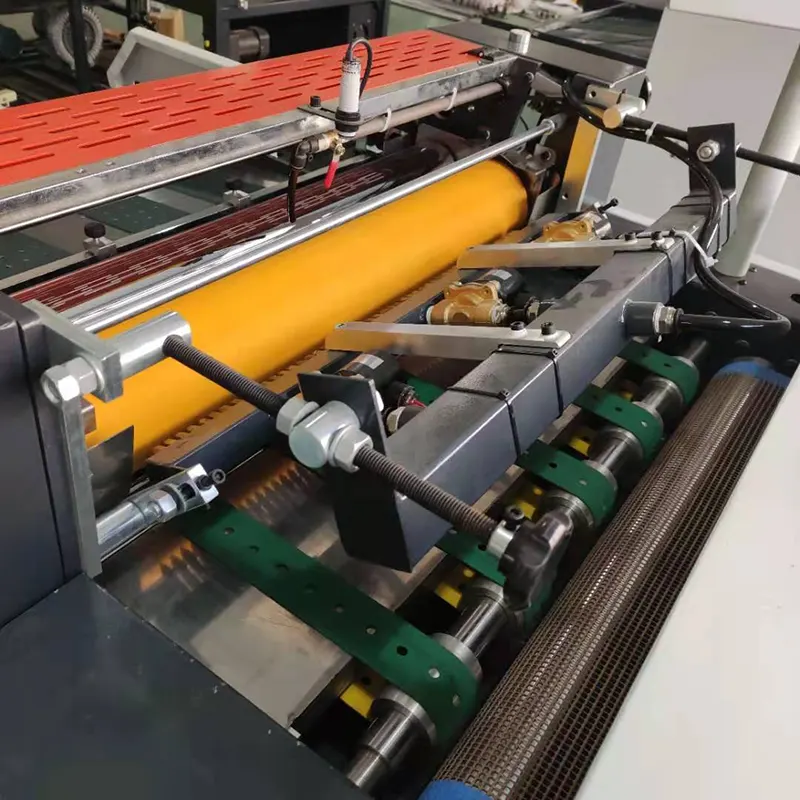

The thickness of oiling can be controlled by adjusting the speed of metering roller to save oil

Equipped with UV lamp curing and infrared lamp drying dual-purpose device
