Online High-speed Coating Machin
  • Online High-speed Coating MachinOnline High-speed Coating Machin
  • Online High-speed Coating MachinOnline High-speed Coating Machin

Online High-speed Coating Machin

Introducing the Online High-speed Coating Machin - the perfect solution for your high-volume laminating needs! This machine is designed to laminate documents, photos, and other materials at a speed of up to 100 sheets per minute, making it ideal for busy print shops and production environments.

Model:FHSG-800B/1200B/1200B-L/1450B

Send Inquiry

Product Description

NEW STAR is one of the main manufacturers in China, specialized in products including Automatic single head uv coating machine. The company will continue to improve products, constantly develop new products, increase technological innovation, and provide customers with high quality products and good services. Contact us now to get the latest quotation.


Online High-speed Coating Machin

Introducing the High-Speed Inline Laminator - the perfect solution for your high-volume laminating needs! This machine is designed to laminate documents, photos, and other materials at a speed of up to 100 sheets per minute, making it ideal for busy print shops and production environments.

Product Parameter (Specification)

No
Item
Data
Data
Data
Data
1
Model
FHSG-800B
FHSG-1200B
FHSG-1200B-L
FHSG-1450B
2
Max paper size(WxL)
760x1050mm
1200x1050mm
FHSG-1200B-L
FHSG-1450B
3
Min paper size(WxL)
270x270mm
300x300mm
340x420mm
420x500mm
4
Paper weight
80-450g/㎡
80-450g/㎡
5
Max.speed
8000sph
8000sph
8000sph
35KW
6
No.x UVlamp
2x8KW
3x9.75KW
7
Power
45KW
85KW
8
No.xIR lamp
18x1.5KW
9
Total Weight
6000kg
12000kg
12200kg
10
Overall Dimensions
14000x1600x1800mm
16500x2050x2000mm
17500x2050x2000mm

Product Feature And Application

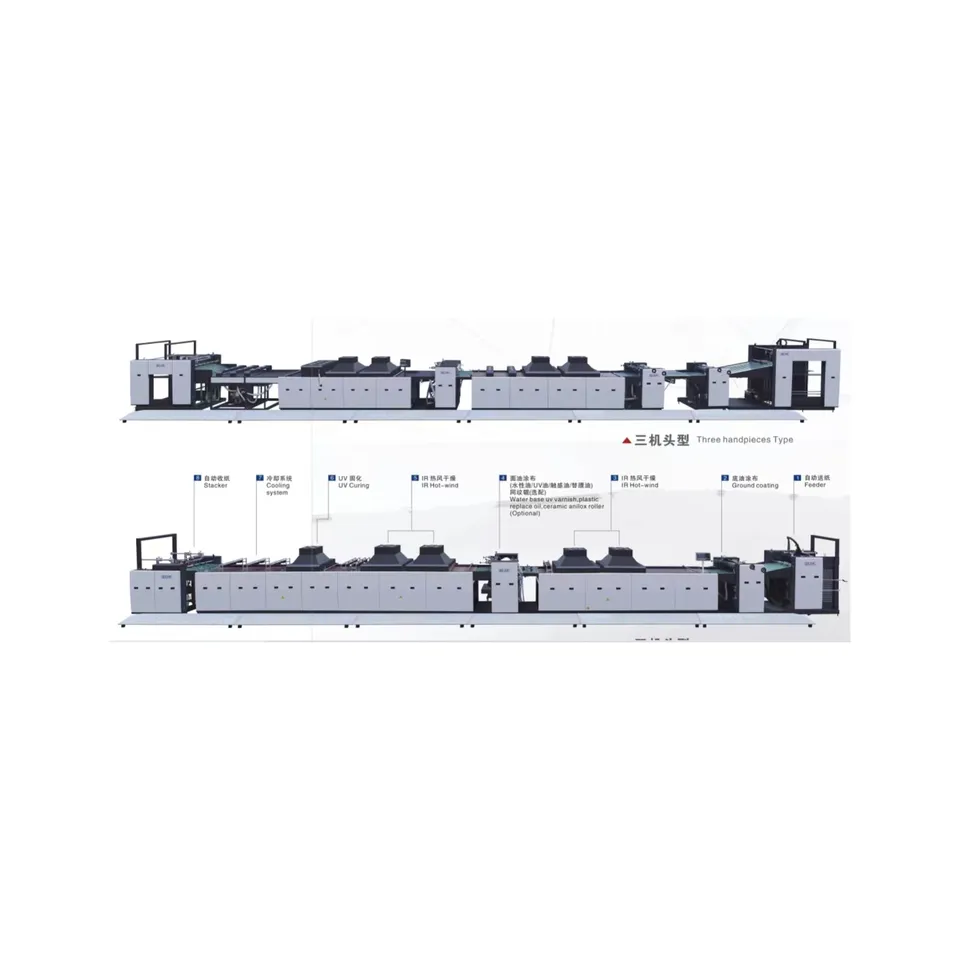

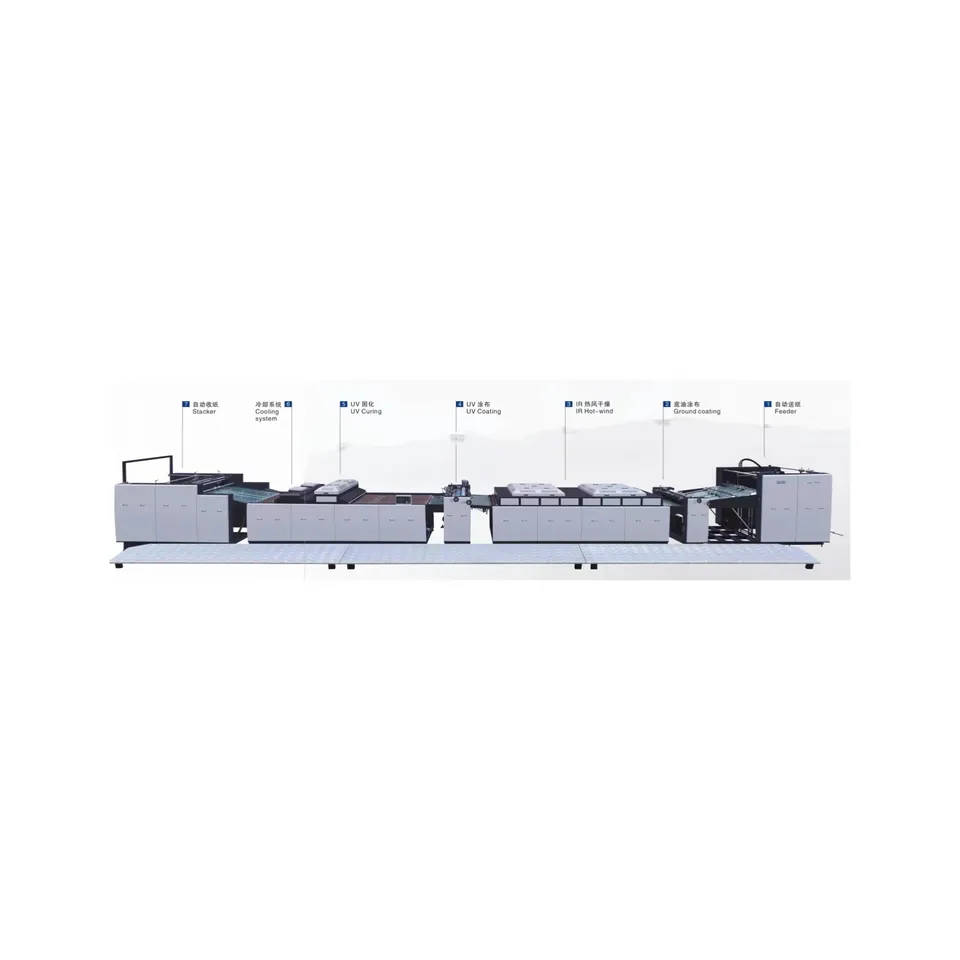

Main configuration and features
1.Automatic feeding sectionSuitable for high speed feeding on both light & thick paper 2. Cating section Main casting
struclure.Can choose double motors reversing or veering coating Optional;Straight spot cating configuration 3.IR hot-wind drying
syatem Suitable for water-based coating,for efficient drying 4.UV curing section 5. Automatic stacker Suitable for high speed
stacker of both light & thick paper. 6.Powder dusting(optional) 7.Customize A. Suits for matt vanish coating B.Corona unit C
Anti-static bar


Product Details

High Speed

Easy to operate

Stream feeder

Servo-controlled pump

Electromagnetic heating

Stable and precise

1 year warranty

Auto feeding

1: Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation

2: Paper photoelectric control, automatic lifting

3: Double protection feeder lifting safety

4: Using the latest paper stacker design, the entire tray can be pushed in, and the tray can be pushed in directly after printing, without manual paper sorting. Pre-stacker can also be used. two-way choice. Greatly save paper time and reduce the labor intensity of operators.


Coating section

(optional)

· Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
· Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by
photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for
self-protection.
· Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
· High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
· The combination of air expansion shaft and braking device can adjust film release tension and speed.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge for the automatic cut of laminated paper.
· Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
· Pneumatic cutting system realizes automatic paper cut.
· Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.


Why Choose Us?

1. With 10 years' Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices

New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.

FAQ

Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
