Multifunctional Automatic Laminating Machine

The latest design and operation idea are used in multifunctional automatic laminating machine by NEW STAR China manufacuturer. Call today to discuss your customization requirements. Sure you’ll find the best suitable product here.

Model:YFMA-850/1050

Send Inquiry    PDF DownLoad

Product Description

Our factory specializes in manufacturing of Multifunctional Automatic laminating machine, NEW STAR was set up formally in2010, as one of the professional China Multifunctional Automatic laminating machine manufacturers and China Multifunctional Automatic laminating machine suppliers, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of Multifunctional Automatic laminating machine and so on.


Multifunctional Automatic Laminating Machine

Multifunctional Automatic laminating machine, high adaptability, free choice of various configurations One machine has multiple functions, and the equipment functions are modular.


Product Parameter (Specification)

Item

YFMA-850

YFMA-1050

Max laminating paper

850*1050mm

1050*1000mm

Min laminating paper

270*270mm

290*290mm

Paper weight

100-500g/㎡

100-500g/㎡

Catch-up error

+_2mm

+_2mm

Laminating speed

0~80m/min

0~80m/min

Power

28kw

30kw

Working power

18KW

20KW

Paper feed height

1150

1150

Paper stack height

1050

1050

Overall Dimensions

8600*1800*2000mm

8600*2000*2000mm

Toatl weight

7500kg

8000kg


Product Feature And Application

1: Powerful function configuration to solve various lamination process problems!

Powder removal (remove surface dust and surface preheating, enhance surface brightness/matteness/and fit)

UV light-solid lamination (strong lamination fastness, especially to solve large solid bottom lamination indentation, embossing, embossing and filming)

Optional: double-sided laminating (front and back laminating at the same time, high-speed and high-efficiency).

2: Pre-stacker mechanism to realize non-stop paper feeding and receiving

3: Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation

4: High degree of intelligence, the whole machine is controlled by PLC and man-machine, and each part is frequency-converted and servo-linked to ensure speed synchronization and easy for one person to operate.

5: Electromagnetic heating system: the temperature rises and falls quickly, the heating roller adopts an electromagnetic heating system and a built-in oil heating system to make sure the temperature is uniform.

6: Driven by the synchronous belt, the equipment is more stable and the accuracy is better.

7: The equipment adopts servo edging, which has higher accuracy and more stability

8: The main pressure shaft is combined with electric pressure

9: Automatic lifting film, reducing labor intensity and safety

10: The main roller adopts double chain, no jump, high running stability, it is not easy to stretch after a long time, which affects the accuracy!


Product Details

Automatic paper feeding system.

Dust removal and front guild system

Laminating system

1: pre-loading feeder

2: non-stopped feeder

3: big format feeder

4: sucking flat table

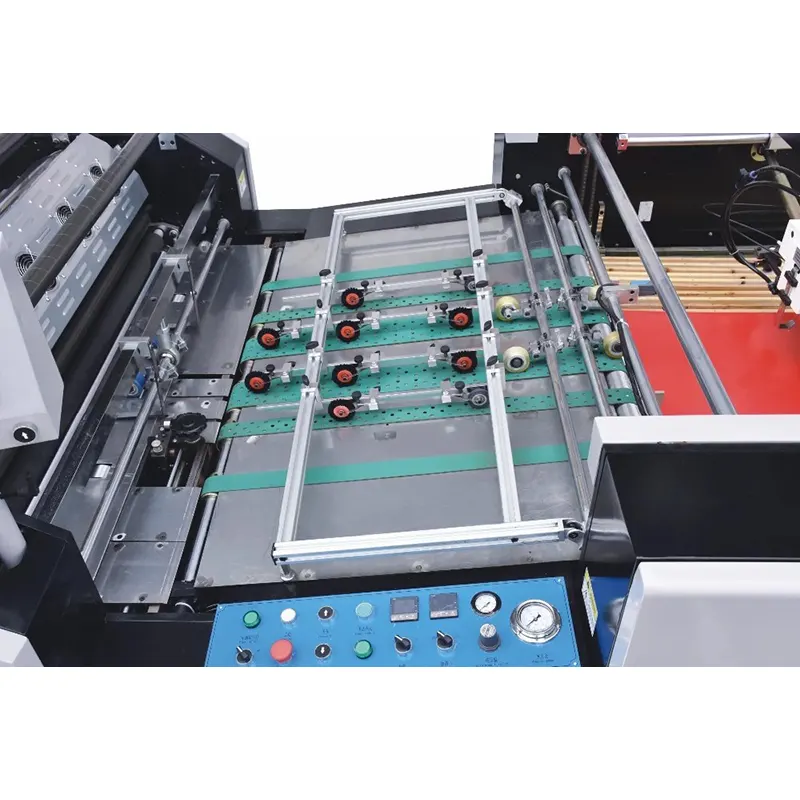

5: front guild

6: Servo has high precision

7: Anti-clutter magnet safety device

1: Mirror iron roller

2: Heating dust removal

3: Scraper cleaning powder

4: Synchronous belt drive

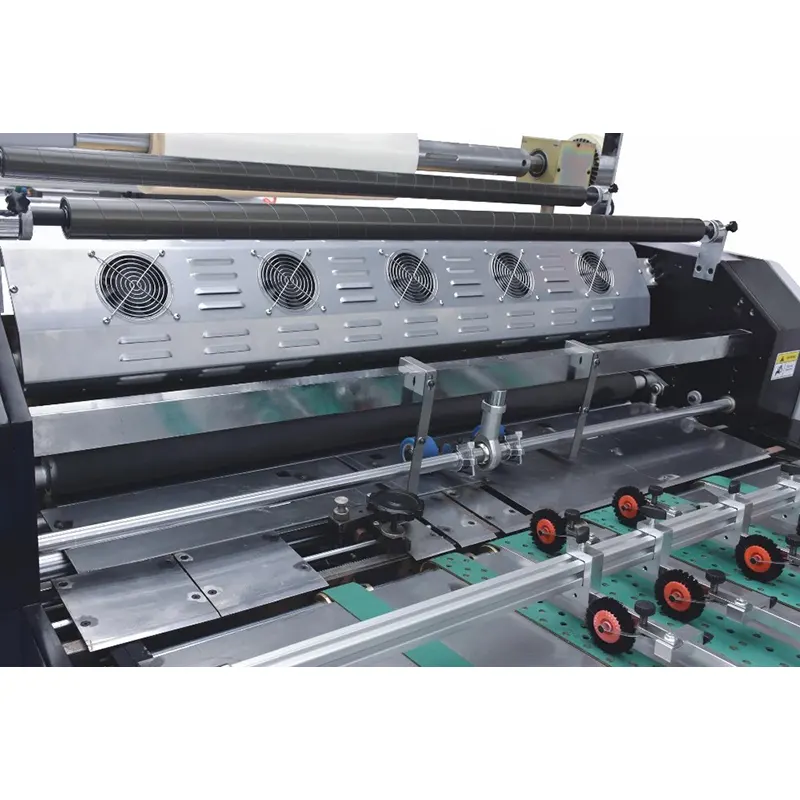

1: electromagnetic heating

2: film straigt roller

3: temperature meteroutside

4: automatic pressure

5: paper lacking and breaking system

6: Double-sided lamination (optional)




UV Dryer

Separation system

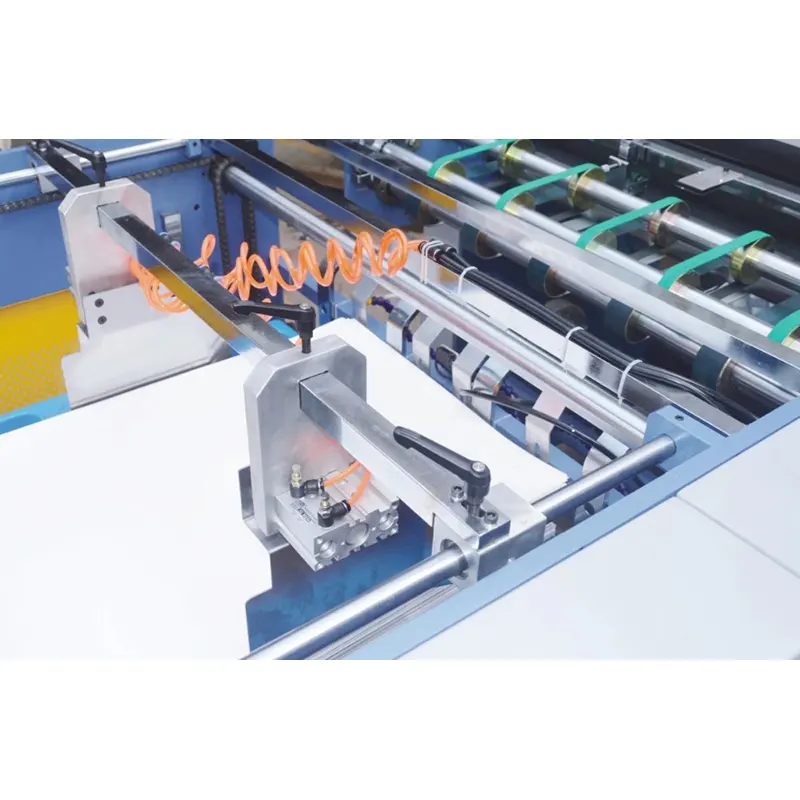

automatic paper stacker

1: sucking and outside air system

2: The UV part adopts 8-12KW adjustable electronic light source, which greatly improves the safety performance compared with the traditional voltage source light source, and can adjust the brightness of the light source automatically according to the change of the running speed of the machine, which can be changed from 30% to 100%. The average energy consumption is saved by more than 30%.

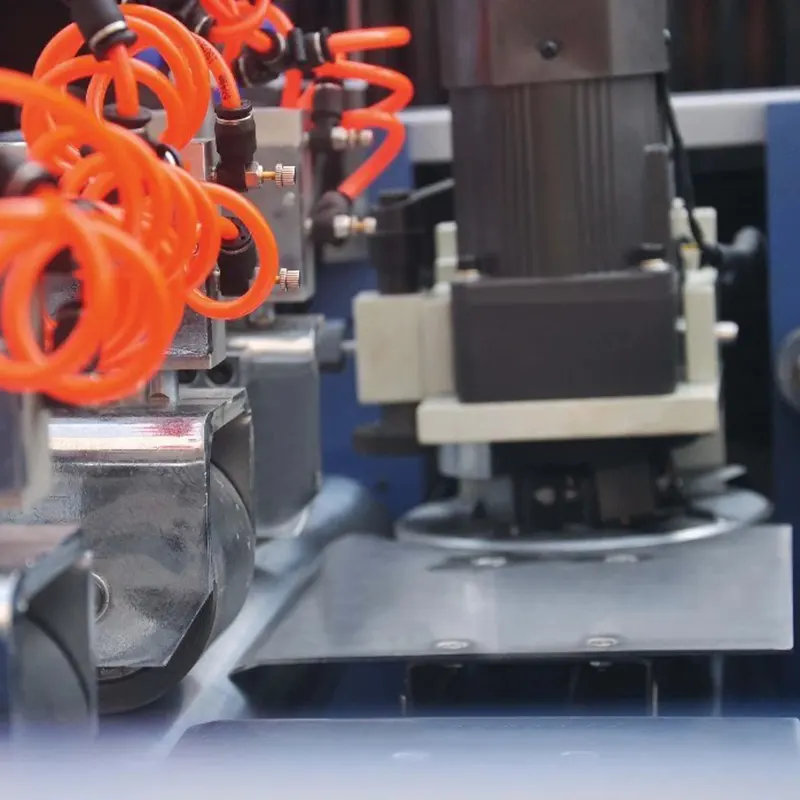

1: back perforating system

2: high speed rotation knife

3: anti-curvev system

4: pneumatic perforating cutting system

5: slot for the separating roller

1: vacuum sucker flat ,belt width 10cm

2: non-stop feeding

3: 850mmtheheight of the paper load

4: counter

5: Paper flap device

6: The electric eye sensor automatically lowers, and the paper output wind pressure adjustment function

7: The intelligent automatic waste discharge system automatically discharges uncut products to avoid scrapping due to paper jams.
