Automatic Inkjet Coding Machine

The DMG-Z1100 Automatic Inkjet Coding Machine is a high-speed, industrial-grade device manufactured by Feihua China, specifically designed for continuous packaging production lines. Featuring advanced thermal inkjet technology, automatic synchronization, and intelligent control, it delivers precise coding on paper, coating, cartons, and packaging materials at speeds up to 160 m/min. It is widely used for coding applications across the food, pharmaceutical, cosmetics, electronics, and logistics industries.

Model:DMG-Z1100

Send Inquiry

Product Description

DMG-Z1100 Automatic Inkjet Coding Machine is a newly upgraded industrial online automatic inkjet coding device developed for mass production packaging lines. Adopting mature thermal inkjet technology and intelligent control system, it realizes fully automatic synchronous coding without manual operation, perfectly solving marking demands of food, pharmaceutical, daily chemical, electronics, building materials and other industries.

Product Parameter (Specification)

Model	DMZ-G1100
Maximum Paper Size (mm)	1100(W)×1100(L)
Minimum Paper Size (mm)	350(W)×320 (L)
Paper Range (g/m²)	80~450
Linear Speed (m/min)	0-160
Paper Stack Height (mm	1200
Voltage (V)	380
Total Power (kW)	15.9KW(LED lights not included)
dimensions LWH)mm	12534×3809×2245
Weight (T)	7.2

Product Application

· Food & Beverage: Snack bags, mineral water bottles, canned food, pastry outer packaging, egg boxes, printed production date & shelf life

· Pharmaceutical & Medical: Medicine cartons, blister packs, medical device packaging, print batch number & drug supervision code

· Daily Chemical & Cosmetics: Shampoo bottles, facial mask bags, cosmetic boxes, spray QR traceability code

· Electronic & Hardware: Wire cable, plastic shell, hardware accessories, print model & serial number

· Building Materials & Logistics: Carton outer box, PVC pipe, wooden board, logistics label batch code

Product Details

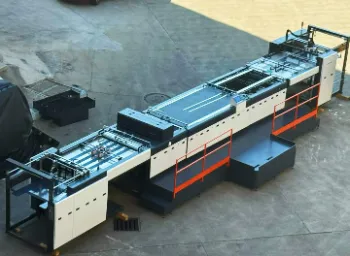

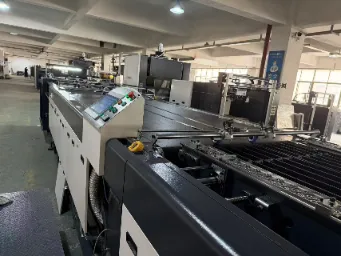

Automatic Inkjet Coding Machine

List of critical and vulnerable parts

No.	Name	Section	Drawing No. (Model No.)	Specification	Remark
1	Tracking conveyor belt	Web guiding section	1100 type	4100×80×1.5
2	Platform flat belt	Platform section	DMZ-1100-G.3.2-11	5855×1160×1.5	Punching
3	Flat belt	Curing section	DMZ-1100-G.4.2-20	3370×480×2.0	Punching
4	Long conveyor belt	Bridge section	DMZ-1100-G.6.2-15	2960×80×1.5	Punching
5	Short conveyor belt	Bridge section		2310×80×1.5
6	Timing belt	Paper feed roller		5M-480-22
7	Timing belt	Paper transfer to bridge		8M-1232-25
8	Timing belt	Paper feed motor		8M-1440-22
9	Timing belt	Feeder head		8M-1472-22
10	Timing belt	Platform section		8M-1312-50
11	Motor timing belt	Platform section		8M-1064-25
12	Fused-joint timing belt	Smooth roller drive		8M-600-25
13	Timing belt	Delivery bridge		8M-1352-25
14	Rubber ring for suction nozzle	Paper feeder
